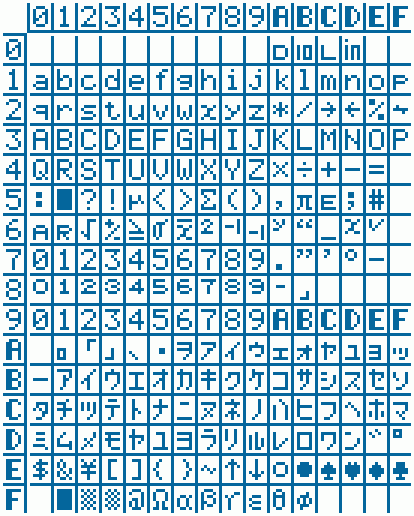

Font
Internally the The FX-603 uses different font and font mapping from the one used in the Alpha codes. That is the first 7 bit of the coded are identical. Well, identical in a very strange form. For example the Alpha codes are in the upper half of the byte ($90 … $AF) while in the font the lower half ($30 … $4F) is used.
This font can be used by peek and poke directly to the display memory and one day the simulator will be able to do that as well.
| $00 | $01 | $02 | $03 | $04 | $05 | $06 | $07 | $08 | $09 | $0A | $0B | $0C | $0D | $0E | $0F | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| $00 |  |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| $10 |  |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| $20 |  |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| $30 |  |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| $40 |  |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| $50 |  |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| $60 |  |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| $70 |  |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| $80 |  |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| $90 |  |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| $A0 |  |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| $B0 |  |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| $C0 |  |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| $D0 |  |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| $E0 |  |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| $F0 |  |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| $00 | $01 | $02 | $03 | $04 | $05 | $06 | $07 | $08 | $09 | $0A | $0B | $0C | $0D | $0E | $0F |
| Hex | Special function |
|---|---|
| $0F | exponent space |
| $4F | space |
| $A0 | “·” middle dot |
Colour Codes #
The following colour code are used:
-
WhiteSmoke - Normal characters.
-
cornsilk - True meaning not yet known but internally used by the Simulator.
-
GhostWhite - Unused code / extra space.
